Metal Powder Sintered Filter_stainless steel water well screen and casing pipe for borehole well drilling

Product Description

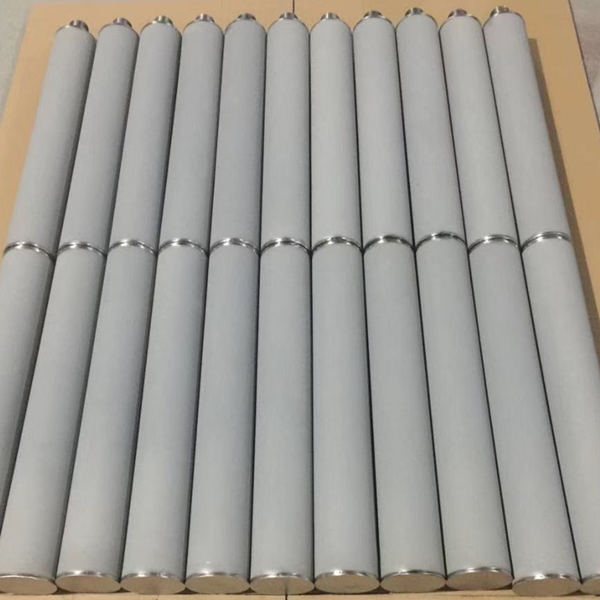

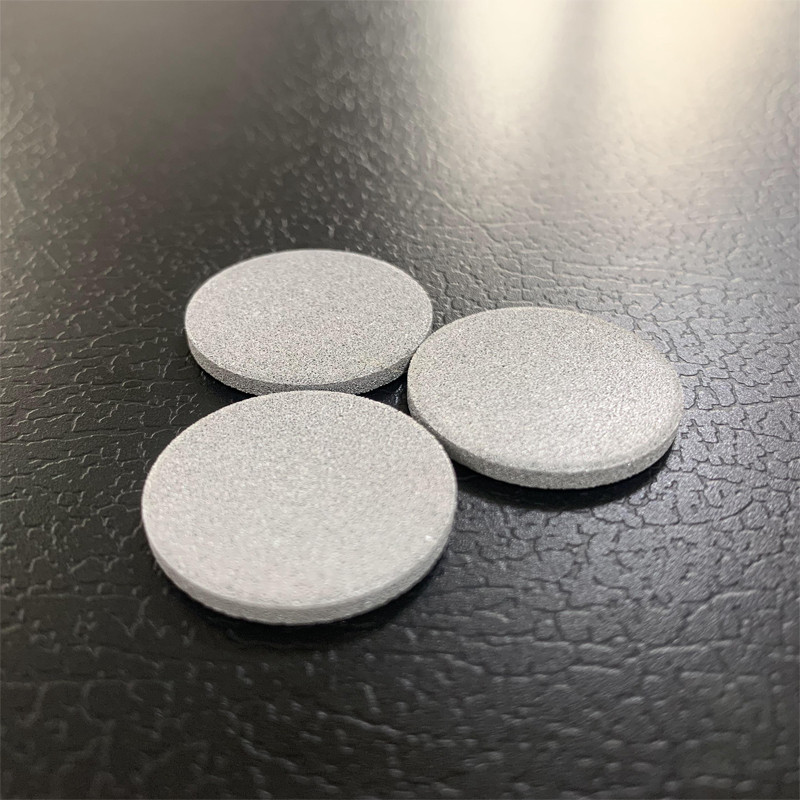

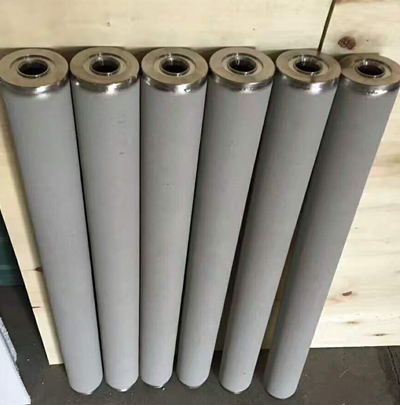

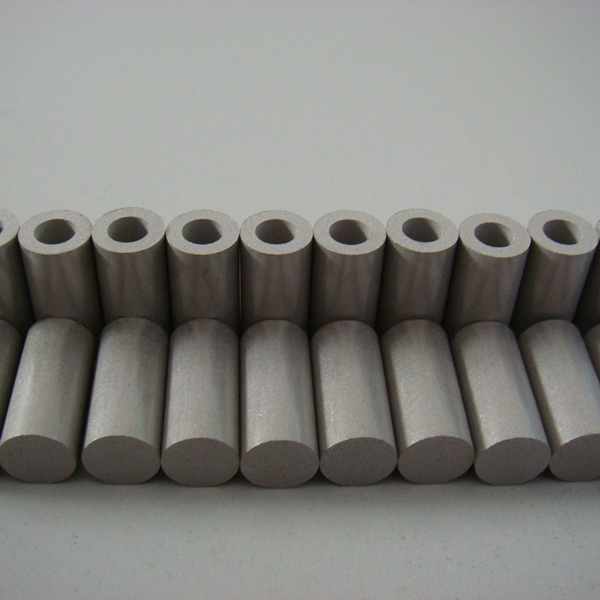

Stainless Steel Powder Sintered Filter

The metal microporous filtration material is made of irregular stainless steel powder processing, formed by isostatic pressing, molding, extrusion molding. It has good permeability filtration performance and high filtration precision, and a certain strength and toughness, can be used under the high temperature of 300 ℃.

Technical data

Rate μm	Coefficient of permeability 10-12m2	Air Permeability m3/h.m2.kpa	Thickness mm	Compressive strength Mpa/cm2	Bubble Point Pressure kpa
0.2		1	3	3.0
0.5		3	3	3.0
1.5		5	3	3.0
2.5	0.09	10	3	3.0	9.16
5	0.23	40	3	3.0	6.1
8	0.91	80	3	3.0	4.6
10	1.81	160	3	3.0	2.6
28	3.82	350	3	3.0	1.8
35	7.29	500	3	3.0	1.4
40	9.43	700	3	3.0	1.1
65	15.1	1000	3	3.0	0.66

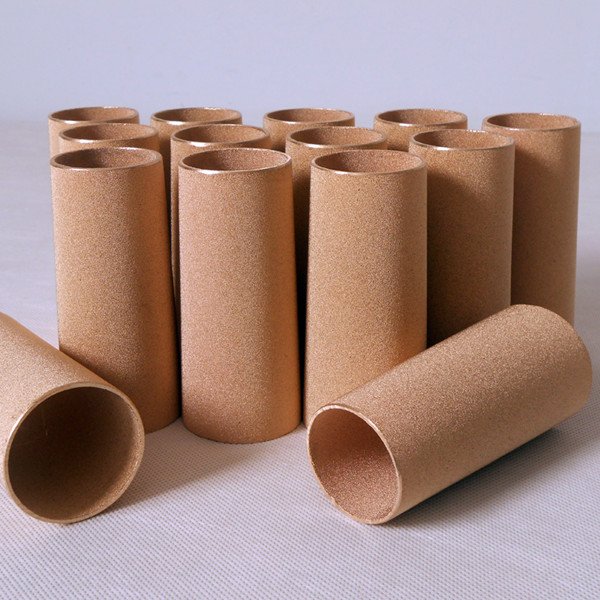

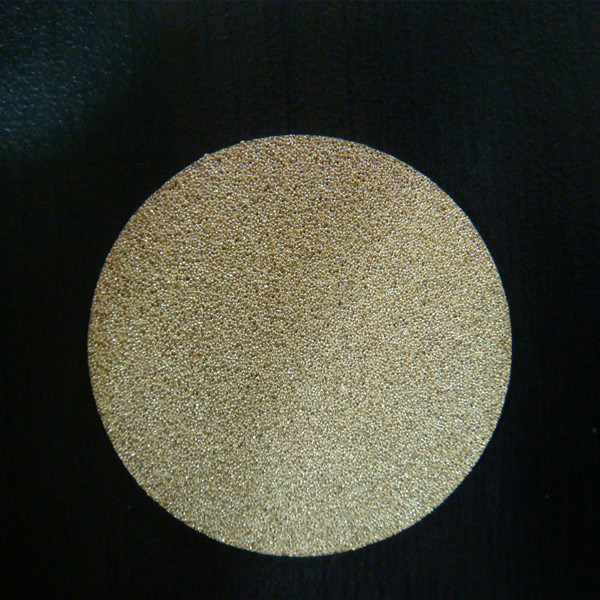

Copper Powder Sintered Filter

It is sintered in high temperature by bronze powder or copper powder, which is mainly used in purification and filtration of various medium or industrial mufflers, it can be manufactured filter element, filter leaf, muffler element on request.

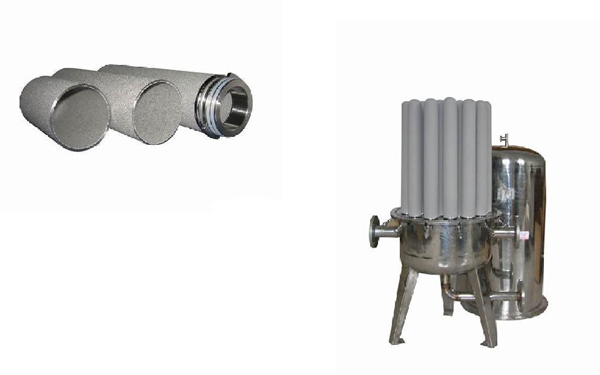

Application

It is mainly applied in the basic industries such as petroleum, chemical industry, environmental protection, as the filter material, porous electrode materials, sound-absorbing materials, damping materials, divergent cooling material, catalyst and catalytic materials, antifreeze and cushioning material.

Packing & Delivery

Package and Delivery

packed with plastic bag and carton, then by wooden case
Or as client's requirement
